Home » Products » Plate Bending Machine » Hydraulic Symmetrical Plate Rolling Machine

Description of the Hydraulic Symmetrical Plate Rolling Machine:
1. This machine is a symmetrical hydraulic plate bending machine with 3 rollers which can be used to roll steel plates into cylinder or U.
2. The upper roller can move up and down.
3. When working, the motor gear is equipped with two rollers.
4. It is easy to supply material thanks to the fixed height of the downer roller.

Main Characteristics of the Hydraulic Symmetrical Plate Rolling Machine:
This machine is symmetric with three rollers; the upper roller does lifting movement in the symmetrical center between the two downer rollers. This movement is driven by hydraulic pistons; while the two down rollers are rotating, the two reducing downer rollers torque the rolling plate.

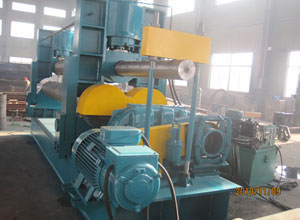

Hydraulic Symmetrical Plate Rolling Machine

Hydraulic Symmetrical Plate Rolling Machine

Technical Parameters of the Hydraulic Symmetrical Plate Rolling Machine:

Model type Max. thick (mm) Max. width(mm) Yield limit (Mpa) Rolling speed m/min Min. reel dia. (mm) Upper roller dia. (mm) Down roller dia. (mm) Mid. space (mm) Motor power(KW) Hydr. power (KW) Size (m) W. ton
W11-30×2000 30 2000 245 4 1200 360 290 480 22 7.5 4.5×1.5×1.95 14.5
W11-25×2500 25 2500 245 4 1200 370 300 480 22 7.5 5.2×1.5×1.95 16
W11-30×2500 30 2500 245 4 1200 420 360 550 30 11 5.3×1.8×2.00 18.6
W11-40×3000 25 3000 245 4 1200 430 370 550 30 11 6.8×2.4×2.80 34
W11-60×3000 30 3000 245 4 1200 450 390 600 30 11 6.95×3.8×3.2 65
W11-45×2500 40 2500 245 3.5 1400 500 400 600 30 15 5.21×2.8×2.5 32
W11-70×3000 40 3000 245 3.5 1600 540 440 600 37 18.5 7.0×3.9×3.4 76
W11-50×3000 50 3000 245 3.5 2000 580 480 750 45 22 6.5×3.2×3.2 82
W11-75×3000 60 3000 245 3.5 2400 660 560 800 55 30
W11-55×3000 70 3000 245 3.5 2800 710 620 850 75 37
W11-80×3000 80 3000 245 3.5 3200 770 680 900 90 37
W11-60×3000 90 3000 245 3.5 3600 820 730 950 110 45
W11-85×3000 100 3000 245 3.5 4000 860 770 1000 110 45
W11-65×3000 110 3000 245 3.5 4400 900 810 1080 132 55
W11-100×3000 120 3000 245 3.5 4800 950 860 1160 132 55

We are a manufacturer and supplier specialized in hydraulic symmetrical plate rolling machines in China. Our company is involved in research, production and sales of hydraulic symmetrical plate rolling machines. Thanks to their high quality and range of size, our products have earned a great reputation both in China and abroad. With more than 20 years of expertise, our products have been exported to the United States, Canada, Germany, France, Spain, Italy, Switzerland, Norway, the Netherlands, Russia, Australia and many others. The precision of our testing and production equipments, and also our skilled workers guarantee a good control of our products. We can, of course, also provide OEM services. If you need hydraulic symmetrical plate rolling machines, do not hesitate to contact us.
