Description
Arc down-adjust plate rolling machine is one of our hot-selling 3 roller plate bending machines. It is well appreciated for its outstanding pre-bending performance compared with other plate rolling machines. Once feeding the plate, the pre-bending of the edge and circle can be completed without turning around.
Features of Arc Adjust 3 Roller Plate Bending Machine
1. Therer is a main drive shaft in the arc down-adjust plate rolling machine.
2. The down roller makes elevation movement aong the arc while the upper roller is fixed.
3. Hydraulic transmission is employed in the main roller’s rotation and lifting movementand. The screen can monitor the lifting displacement.

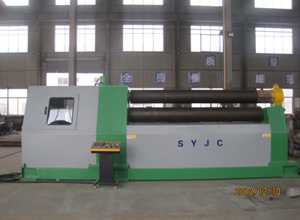

Arc Adjust Plate Rolling Machine
Advantages of This 3 Roller Plate Bending Machine1. Due to the application of mobile independent console, the arc down-adjust plate rolling machine is more convenient to operate.
2. Operation goes safer with the safety device.
3. This 3 roller plate bending machine serves as an advanced sheet metal bending equipment with high bending precision.
4. Our arc down-adjust plate rolling machines are simple to manipulate and easy to maintain.
Technical Parameters
| Type | Max. Thickness (mm) | Max. Bending Width (mm) | Yield Limit Mpa | Roller Diameter (mm) | Motor Power (KW) |
| W11H-3×3200 | 3 | 3200 | 245 | 170 | 2.2 |
| W11H-6×2000 | 6 | 2000 | 245 | 160 | 5.5 |
| W11H-6×2500 | 6 | 2500 | 245 | 170 | 2.2 |
| W11H-6×3200 | 6 | 3200 | 245 | 240 | 2.2 |
| W11H-8×2000 | 8 | 2000 | 245 | 190 | 5.5 |
| W11H-12×2000 | 12 | 2000 | 245 | 230 | 5.5 |
| W11H-12×2500 | 12 | 2500 | 245 | 270 | 7.5 |
| W11H-12×3200 | 12 | 3200 | 245 | 280 | 4 |
| W11H-20×2000 | 20 | 2000 | 245 | 300 | 18.5 |
| W11H-16×3200 | 16 | 3200 | 245 | 330 | 18.5 |
| W11H-25×3200 | 25 | 3200 | 245 | 420 | 22 |
| W11H-35×2500 | 35 | 2500 | 245 | 460 | 30 |
Our company is a professional manufacturer and supplier of arc down-adjust plate rolling machines in China. In addition to this 3 roller plate bending machine, we are also committed to producing press brakes, ball mills and rotary kilns. Our company possesses more than 20 years’ producing, selling and serving experience. With advanced technological equipment, tremendous technical strength and reliable product quality, our arc down-adjust plate rolling machines have been exported to the USA, Brazil, Colombia, Ecuador, Bolivia, Peru, Chile, Mexico, New Zealand, the United Arab Emirates and others. If you need this 3 roller plate bending machine, please do not hesitate to contact us.
-
